Best Rf Demo Kit NanoVNA Attenuator Board Tester Module For Network Analysis

Main Use:

RF Demo Kit NanoVNA RF test board demonstration calibration board, used for learning vector network analyzer, antenna analyzer test calibration learning
High Quality: Each module is carefully selected for high quality and high reliability
Lightweight and Portable: The board is small and lightweight, suitable for carrying around. Comes with 2 UFL patch cables for easy access
Multiple Functions: The board fully integrates 18 functional modules
High-quality Service: 100% quality and safety guarantee.

Made of fine quality material, practical, easy to operate and use, wide application range, has a long service life.

Features:

Made of fine quality material, practical, has a long service life.
Compact and lightweight, easy to operate and use.
This is a vector network analyzer learner tool.
Can be used with NanoVNA-F to measure 6.5M ceramic notch filter.
Can be used with NanoVNA-F to measure homemade low-pass-filter, 3dB bandwidth about 400MHz.

Specifications:

Material: PCB
Color: green
RLC series and parallel circuit 1
RLC series and parallel circuit 2
33 ohm resistance, SWR=1.5
75 ohm resistance, SWR=1.5
BSF ceramic notch filter, center frequency 6.5MHz
BPF ceramic filter, centre frequency 10.7MHz
RC series circuit
LC series circuit
Capacitor
Inductance
Homemade low-pass filter, 3dB bandwidth 400MHz
Homemade high-pass filter, 3dB bandwidth 500MHz
Short-circuit calibration circuit
Open-circuit calibration circuit
50 ohm load calibration circuit
Straight-through
10dB attenuation circuit
3dB attenuation circuit
Each set of functional circuits
Item size: 100 * 100mm / 3.9 * 3.9in
Item weight: 38g / 1.3ounce
Package size: 159 * 152 * 52mm / 6.3 * 6.0 * 2.0in
Package weight: 65g / 2.3ounce

Package List:

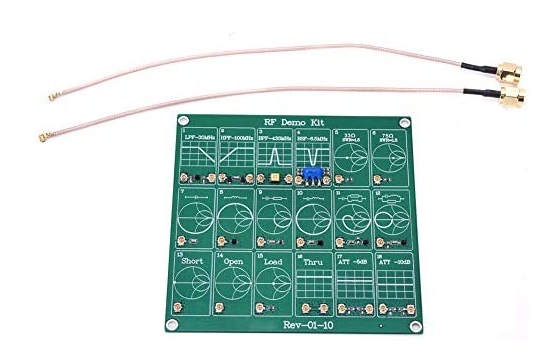

1 * PCB RF Tester Board
2 * 200mm Adapter Cable
