UHF Panel Antennas

UHF Panel Antennas

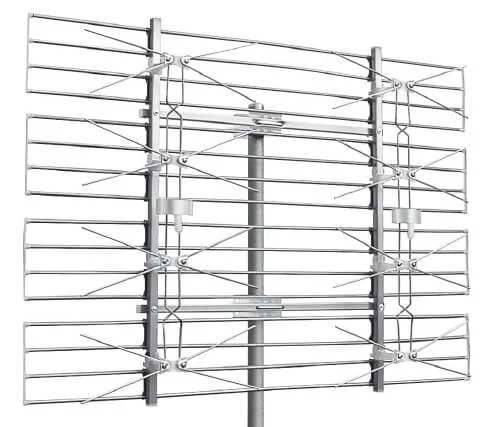

Panel antennas code 0K21PD and 0K38PD are produced with zinc plated and painted grid reflector and Ø 4 mm aluminium rod elements. On the contrary, the other models are wholly realised in aluminium, treated with anticorrosion process. The structure is strong and compact and a particular opening system of the dipoles allows to reduce the volume of the packages. Multiple panels with high gain and elevated directivity find their best employment in those areas where signals are poor or come from various directions.

Channels	Code	Elements	Gain dB	Front-back ratio dB	Horizontal beamwidth	Wind loading	Length
21...69	45PR2D	2	7...10	20	64°...30°	3.3	538
21...69	454PD	4	10...13	22	60°...32°	6.3	840
21...69	OK21PD	4	10...13	22	60°...32°	5.7	600
21...69	458PD	8	13...17	26	30°...16°	18.3	833
21...69	4516PD	16	13...18	30	24°...12°	32.5	1299
21...69	21PD	8	13...17	26	30°...16°	18.0	945
21...69	21PVD	8 vert.	13...17	26	20°...10°	19.0	1560
LTEfree
21...60	454PL	4	10...13	22	60°...32°	6.3	840
21...60	OK21PL	4	10...13	22	60°...32°	5.7	600
21...60	45PR2L	2	7...10	20	64°...30°	3.3	538
21...60	458PL	8	13...17	26	30°...16°	18.3	833
21...60	4516PL	16	13...18	30	24°...12°	32.5	1299
21...60	21PL	8	13...17	26	30°...16°	18.0	945
21...60	21PVL	8 vert.	13...17	26	20°...10°	19.0	1560

UHF/VHF HDTV Antenna

Lava UHF/VHF  Antenna

With over 1,000 stations in more than 200 markets broadcasting digital television, nine out of ten households can now receive free HDTV signals with the right antenna, a set-top box and a high-definition television. This Lava Electronics HD-2605 Remote Control HDTV Antenna features 360-Degree rotation to make sure you get the best HDTV reception possible. Its high sensitivity reception helps you get the weakest HDTV signals in more rural areas. These antennas are capable of receiving weaker HDTV signals when no significant multipath (ghost) conditions exist, i.e. no reflective structures nearby.

Customer says about this products :

John S Pieri wrote : We get 22 channels and we are 80 miles from the nearest transmitters.All the channels are clear, crisp, HDTV national channels and a few local channels. Install took about 20 minutes after assembly.All we used was a Phillips screw driver. Once mounted, with the directional motor, we aimed it perfectly for best reception.The 30 feet of cable provides lots of options for mounting on your roof top.We really didn't even need a tall pole, but we put it atop a 10 foot one inch pole.This will work on your RV or boat too, it doesn't have to be mounted too high.Cable TV is fine, but this will pay for itself in one month, so we were sold.

Buy Now in Amazon >>>

Another customer wrote :
We live 80 to 100 miles from any transmission towers which are in several different directions. After trying several so called omnidirectional antennas we purchased this antenna after reading reviews. The antenna is outstanding. It pulls in strong signals from all the closest towers and we even get some channels from areas beyond 100 miles.

Keep in mind digital signals are effected by severe weather much like the small satellite dishes so during bad weather we loose the furthermost signals and some of the closest ones come and go during the worst weather.

We have been through several mid-west severe thunderstorms since I installed this antenna and everything still works like it did out of the box.

Just an added note the antenna arrived too late to install out side the first night so I sat it on a table in our front window and got better reception with it there than we were getting with our other antenna mounted 50 feet high outside. This is truly a great antenna and I would strongly recommend it especially for anyone living in extreme fringe areas.

My only suggestion to the company is to include a direction indicator on the on the remote control and have directional buttons instead of double clicking to reverse direction.

Please more read details for this Antenna

Lava HD-2605 UHF/VHF HDTV Antenna with Remote Control
