Arduino Nano 5V 16MHz Compatible Development Board ATmega328P



Arduino Nano 5V 16MHz Compatible Development Board ATmega328P -

Based on Arduino Nano Development Board and layout. Reliable for projects that need low power consumption.

8 analog inputs: A0 ~ A7

14 Digital input/output: TX, RX, D2~D13

6 PWM ports: D3, D5, D6, D9, D10, D11

1 pair serial transceivers: RX & TX

Using Atmega328 AU

There is bootloader installed

Support USB download and Power

Support for external 5V ~ 12V DC power supply

Support power supply by 9V battery

Support ISP download

Notes:

There may be slight variations in components and layouts from each batch of shipments, but the functionality and pinout remain the same.

Smarthome, IoT, ESP32, alternative ESP8266, DIY, Atmel, sensor programming, automation, deep sleep, low current consumption, Atmel, ATmega328P, SMD

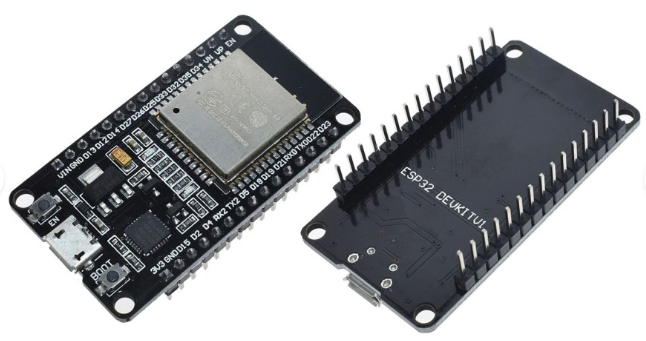

ESP-WROOM-32 Dual Core Development Module ESP32 WiFi Bluetooth ESP-32s



ESP-WROOM-32 Dual Core Development Module ESP32 WiFi Bluetooth ESP-32s

Quality Notes:
This is the Premium version of the ESP32 Board that still uses quality components, not the strip-down version of the board whose components are replaced
to make it cheaper,
but at the expense of reliability.
1. Serial Chip: CP2102 (not CH9102)
2. Main Capacitor: Yellow Tantalum (not Black Tantalum)

ESP32 chip specifications:
+ Cores: Dual
+ Wi-Fi: 2.4 GHz up to 150 Mbits/s
+ Bluetooth: BLE and Legacy Bluetooth
+ It runs 32 bit programs.
+ Clock frequency: up to 240MHz
+ RAM: 512 kB
Peripherals:
+ Hall Effect Sensor
+ Temperature Sensor
+ Capacitive Touch
+ ADCs
+ DACs
+ UART
+ SPI
+ I2C
+ I2S (Integrated Inter-IC Sound)

ESP32-CAM WiFi Bluetooth Dual Core Development Board w/ OV2640 Camera

ESP32-CAM WiFi Bluetooth Dual Core Development Board w/ OV2640 Camera - The ESP32-CAM is a very small camera module with the ESP32-S chip. Besides the 160° OV2640 camera, and several GPIOs to connect peripherals, it also features

a microSD card slot that can be useful to store images taken with the camera or to store files to serve to clients.

Features:

+ The smallest 802.11b/g/n Wi-Fi BT SoC module

+ Low power dual-core 32-bit CPU, can also serve the application processor

+ Up to 160MHz clock speed, summary computing power up to 600 DMIPS

+ Built-in 520 KB SRAM, external 4MPSRAM

+ Supports UART / SPI / I2C / PWM / ADC / DAC

+ Support OV2640 and OV7670 cameras, built-in flash lamp

+ Support image WiFi upload

+ Support TF card

+ Supports multiple sleep modes

+ Embedded Lwip and FreeRTOS

+ Supports STA/AP/STA+AP operation mode

+ Support Smart Config/AirKiss technology

+ Support for serial port local and remote firmware upgrades (FOTA)

Package Included:

1 pcs ESP32-CAM Module

1 pcs 160° OV2640 Camera

ESP-01s 1 MB WiFi Microcontroller ESP8266 ESP01s Replace ESP-01 ESP01



ESP-01s 1 MB WiFi Microcontroller ESP8266 ESP01s Replace ESP-01 ESP01 - Here comes ESP-01s, the new version of the well-known ESP-01.

ESP-01s vs ESP-01 differences:
1. Red power LED is removed (saving a couple mA and good for battery operated project)
2. Blue LED is now on pin 2
3. Has silkscreen with pin labeling on the back
4. Has far more chip capacitors for better working stability
5. The WiFi range has been slightly increased
6. Has a pull-up resistor connected between CH_PD and Vcc, so only need to connect Vcc & Gnd for booting and running

Specifications:
+ 32-bit RISC CPU: Tensilica Xtensa LX106 running at 80 MHz
+ 64 KiB of instruction RAM, 96 KiB of data RAM
+ 8 Mb (1 MB) External QSPI flash
+ IEEE 802.11 b/g/n Wi-Fi
+ Integrated TR switch, balun, LNA, power amplifier and matching network
+ WEP or WPA/WPA2 authentication, or open networks
+ SPI, I²C, I²S interfaces with DMA (sharing pins with GPIO)
+ UART on dedicated pins, plus a transmit-only UART can be enabled on GPIO2
+ 1 10-bit ADC

NodeMCU v2 Amica ESP8266 CP2102 4MB WiFi Microcontroller ESP-12E ESP12

NodeMCU v2 Amica ESP8266 CP2102 4MB WiFi Microcontroller ESP-12E ESP12 - This module is an ideal version, still using the yellow Tantalum Capacitor (vs the black color which is inferior) and more premium components.
It will be more stable when used in the Lab or in the field. (See picture no.3)
It's not the CHEAPER NodeMCU v3 as it's bigger and uses the inferior USB Chip, the CH340.
Facts about v3:
1. Not a continuation of NodeMCU v2 and produced by a different manufacturer
2. Bigger size (58 x 31mm) than v2 (48 x 26mm)
3. Not breadboard-friendly, v3 will fill the entire breadboard pin, so it can't be used to connect other peripherals.
(See picture no.5)

Features:
+ MCU: Xtensa Single-core 32-bit L106
+ Typical Frequency: 80 MHz
+ Memory:
32 KiB instruction RAM
32 KiB instruction cache RAM
80 KiB user-data RAM
16 KiB ETS system-data RAM
+ External QSPI flash: 4 MB
+ Wireless 802.11 b/g/n standards
+ Support STA / AP / STA + AP three operating modes
+ Built-in TCP / IP protocol stack to support multiple TCP Client connections (5 max)
+ D0 ~ D8, SD1 ~ SD3: used as GPIO, PWM, IIC, etc. Drive Port 15mA
+ 10-bit ADC
+ Power input: 4.5~9V (10V Max), USB-powered, providing USB debugging interface
+ USB interface chip: CP2102
+ Current job: keep sending: 70mA (200mA Max), Standby: <200uA
+ Transfer rate: 110 - 460800bps
+ Support UART / GPIO data communication interface
+ Remote firmware upgrade (OTA)
+ Smart Link supports intelligent networking capabilities
+ Operating temperature: -40 ~ 125°C
+ Size: 48.5 x 25mm
+ Weight: about 7g
