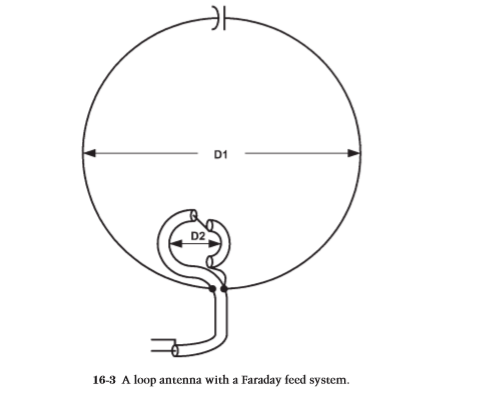

Another loop antenna is shown in Fig. 16-3. This antenna has a Faraday feed system rather than a capacitor-coupled feed system, as did the Patterson loop. The tuning is accomplished by CA, the series tuning capacitor. The requirement must be met that D1/D2 5.
