4G LTE Bandstop Antenna UHF Filter 703 MHz - 803 MHz

As from 4G LTE Band spectrum, we can see that at LTE Band 44 , allocation frequency of 4G LTE at 703 MHz-803 MHz. And this spectrum frequency , overlapping with digital TV spectrum. As we know, digital tv spectrum frequency at band 703 MHz - 803 MHz, with bandwith 100 MHz.
So the center frequency will be :

Center Frequency 703 - 803 MHz = 753 MHz

I use Bandstop filter calculator refer to http://www.wa4dsy.net/filter/filterdesign.html

 After we input the parameter of center frequency 753 MHz , and bandwith 100 MHz at calculator, then click compute parts as the menu on calculator, then we get the result of 3 filter design with 2 circuit , butterworth, bessel, and chebyshev.

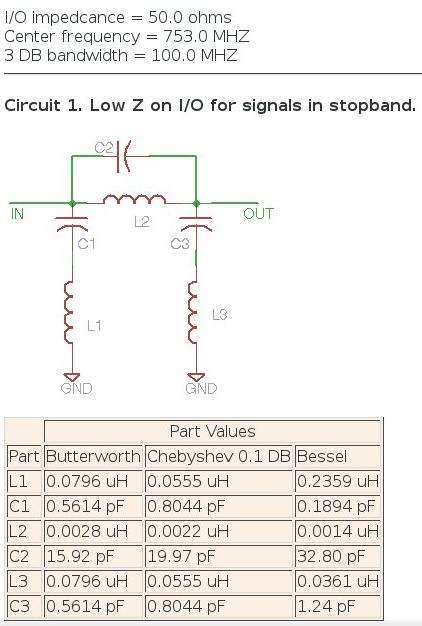

The component values of  3 design filter, for butterworth, bessel, and chebyshev are :
 You can choose one of three offering design and choose one of two circuit for your implementation.
The output chart graph of filter design are :
