SUCCESS
Monitoring

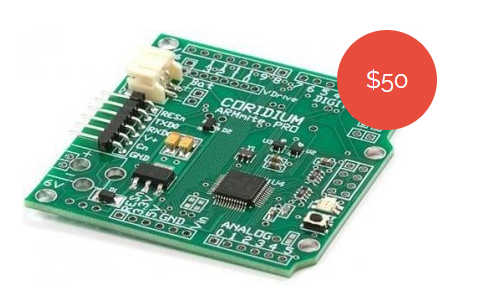

We use the ARMmite
Pro (predecessor to the LPC2103) to control a high-speed frequency
digitizer that we make for one of our products. It offers great
"pin-level" sensing and control, and can do ‘smart’ things like send the
data as serial, and it can be programmed quickly in a BASIC-type
language.
By orienting the design around the Pro, I can make changes in the device’s operation quickly in software rather than making hardware design changes, which is a much slower process.
By orienting the design around the Pro, I can make changes in the device’s operation quickly in software rather than making hardware design changes, which is a much slower process.
—Ron R.,
Measuretech
Measuretech
APPLICATIONS
- Sensors
- Monitoring
- Measurement
- Logging
- Simple controls
TECHNICAL SPECIFICATIONS
System
- Board-mounted 60 MHz ARM7 CPU (LPC2103)
- Programmable in a compiled BASIC or C
- Operates faster than 10 million BASIC lines/second
Size
- 2.1”x2.05”
Storage
- 20k user code space (1600 Instructions)
- 5k user data
- 32k flash size
- 8k RAM size
Power
- <250 mW
- 5-7V DC input
- Provides 500 mA +5V
Connectors
- Debug connector
- Connections for 21 digital I/O
- 6 x 10 bit analog A/Ds
- Programming dongle sold separately
DOCUMENTATION
FREE SOFTWARE TOOLS
You can buy this products at coridium.us
