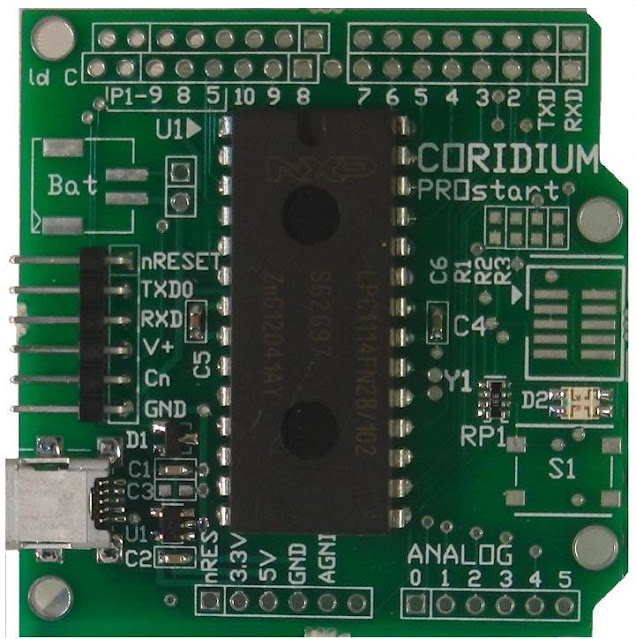

PRO Start Board 50 MHz (LPC1114)

PROstart LPC1114

• Even our lowest priced Arduino-shield compatible CPU is faster and offers more memory than competing boards
• Offers full IEEE 754 floating point support
• Reduced price brings high performance to entry-level products

APPLICATIONS

• Sensors
• Monitoring
• Measurement
• Logging
• Simple controls

TECHNICAL SPECIFICATIONS

System

• Board-mounted 50 MHz ARM M0 CPU (LPC1114)
• Programmable in a compiled BASIC or C
• Support for Arduino Sketches

Size

• 2.1”x2.05”

Storage

• 20K user code space (1600 Instructions)
• 2K user data
• 32K flash size
• 4K RAM size

Power

• < 50 mW
• 5-7V DC input

Connectors

• Debug connector
• Connections for 22 digital I/O
• 6 x 10 bit analog A/Ds
• Programming dongle sold separately
