This Circuit is One transistor Radio for All AM longwave and shortwave signal. The Transistor use for demodulation and amplification signal from 1.5 m antenna from ferrite Rod.
The headphone used as supply power from battery 1.5 Volt , also turn off the supply when unplug.
For L1 you can used ferrite rod and AM and SW winding. Coil is made up by using 26 SWG 100 turns on ferrite rod.
Learn about AM and FM radio technology and the the functional components used in creating AM-FM receivers and amplifiers. 56 page training course is divided
into 9 lessons; Audio Amplifier, AM Detector, AM IF, AM Amplifier, AM Mixer & Oscillator, FM Detector, 1st FM IF, 2nd FM IF, FM RF Stages. “Superheterodyne”

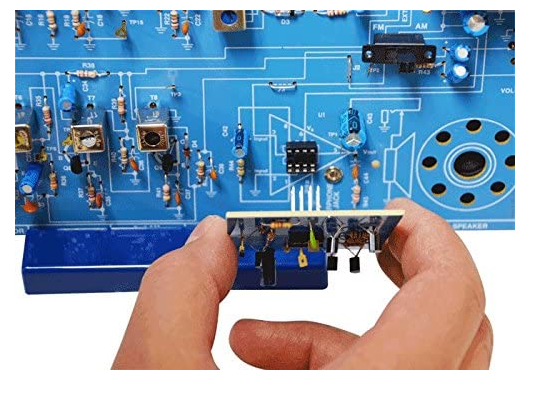

designed to receive standard AM and FM broadcast frequencies. New transistor module allows you to switch between the modern integrated circuit (IC) technology
and the original transistor technology. Includes radio mounting stand.
The AM/FM Radio project is divided into two parts, the AM Radio Section and the FM Radio Section. Initially, only identify the parts that you will need for the AM radio as listed in the manual. Do not open the bags listed for the FM radio.
A separate parts list will be shown for the FM radio after you have completed the AM radio. 9 volt battery needed but not included.
Audio Amp, AM Detector, AM IF, AM Amp, AM Mixer & Oscillator, FM Detector, 2 x FM IF, FM RF Stages. With 56 page Training Course is divided into 9 lessons. Check it Out !
