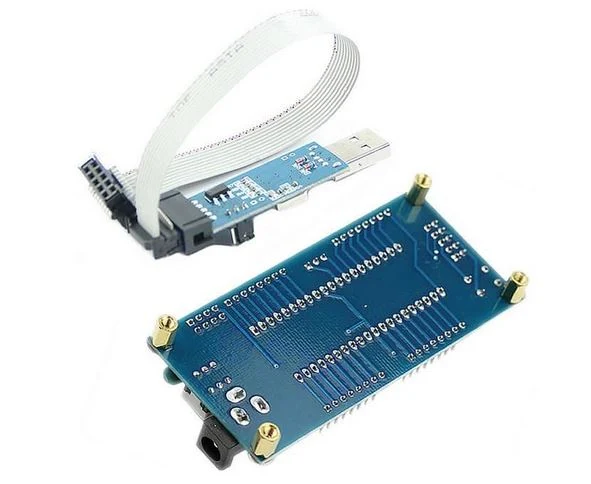

Description Programmer ATMEGA16 ATmega32 AVR Board + USB ISP USBasp For ATMEL
ISP ATMEGA16 ATmega32 Minimum Board
Product Features:
1. 32 I/O pin all the leads.
2. Classic ATmega16 minimum system, eliminating the hassle of soldering.
3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.
4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.
5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply).
6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
7. Expand outside 4 channel VCC, GND.
8. Reset: Power-on reset and reset button.
9. Power LED (D1) and the program run indicator (DStandard ISP download interface.
ISP Programmer ATMEL ATTiny 51 Board
List of supported chips:
51 Series:
AT89S51, AT89S52, AT89S53, AT89S8252
AVR Series:
ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V), ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L),
AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.
Link step by step manual guide tutorial:
http://www.instructables.com/id/Getting-Started-With-ATMEGA-Microcontrollers/
Link WinAVR programmer
http://www.sourceforge.net/projects/winavr/files/latest/download
Link AVRDude Programmer
avrdude-gui.soft112.com/download(dot)html
Link circuit, firmware, driver:
fischl.de/usbasp/
Package :
1 Pce Programmer ATMEGA16 ATmega32 AVR Board
1 Pce USB ISP USBasp For ATMEL
