And We have easily to design Google maps and microsoft Paint and Microsoft Word , yes this is the easy way to design with tight budget.
Wireless Radio

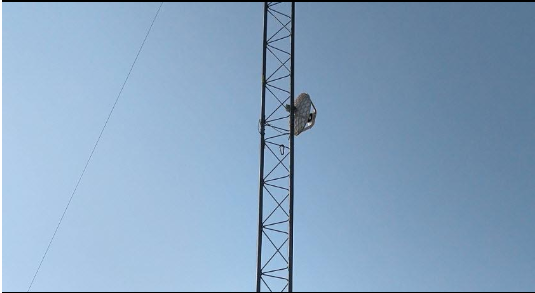

We used Mikrotik DynaDish Point To Point Radio Antenna for Long Distance End Point , almost 40 km Line Of Sight ( LOS) Distance in free space.
And We have the stable Internet connection and also in rainy days the quality is fair not drop.
Why We choose Mikrotik Equipment for this purpose ? For limited budget material and service , Our advised you choose Radio equipment with on budget and have stable quality. And Mikrotik it is Cheap, stable and also Easy to Setup and Maintain with IP Public. Most our network using Mikrotik, sure we also have Cisco, Aruba, TP Link, and etc. With 5 GHz free Radio frequency for Internet used.
Our recommendation for long distance used Mikrotik DynaDish , and you can find in here on Amazon. or at your nearest shop.
Feature :
Product code :RBDynaDishG-5HacD
CPU :QCA9557 720 MHz
Size of RAM : 128 MB
10/100/1000 Ethernet ports : 1
Wireless : Built-in 5 GHz 802.11ac, dual-chain
Frequency range : 4920 - 6100 MHz (Operating range limited by Country Regulations)
Antenna gain : 25 dBi
Antenna beam width : 8
Wireless chip model : QCA9892
Port to port isolation : 23 db
Return loss : < 15 db
VSWR : 1.5
PoE in : Ye s
Supported input voltage : 11V - 60V passive PoE or : 802.3af/at with unshielded cable
Voltage Monitor : Yes
PCB temperature monitor : Yes
CPU temperature monitor : No
Dimensions : 404 mm, height 175 mm
(without mount)
License level : 3
Operating System : RouterOS
Max Power consumption : 9 W
Supported channels : 20/40/80 MHz
Router
On the Customer Side , if the customer connections more than one computer or other rooms must another internet connection you need a router. Choose Mikrotik RB750Gr3 5-port Ethernet or other similar brand products.
You can find this Products on Amazon, and other online store , and as my experienced with Mikrotik Products and the easiest GUI admin featured for setting up the Mikrotik from Accespoint, Wireless Radio and others products it will also reduce the maintenance cost , because you don't have to go onsite after onsite installation and turn on the Mikrotik, used IP Public on the customer site , setting the Miktrotik and you can regularly check from remote with IP Public.
Mikrotik hEX RB750Gr3 5-port Ethernet Gigabit Router is Router 5 Gigabit Ethernet Ports became our recommended router for small office, cafe, small restaurant in mall, or small shop and with Mikrotik Accesspoint
Mikrotik hEX RB750Gr3 5-port Ethernet Gigabit Router
Our recommended for your clients used Mikrotik hEX RB750Gr3 5-port Ethernet Gigabit Router, you can buy it in Amazon , Recommended also by user.
Others alternative Mikrotik Routerboard for you, depends on your network design and
Other related products of Mikrotik Routerboard for you.
Mikrotik RouterBOARD hEX lite 5 ports router 5 X 10/100 PoE OSL4 - (RB750r2)
MikroTik hEX S Gigabit Ethernet Router with SFP Port (RB760iGS)
Add to Cart
If you want to choose other related Mikrotik DynaDish Wireless Radio and Mikrotik Router Products please find here.
